Figure 6  CLOSE WINDOW

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

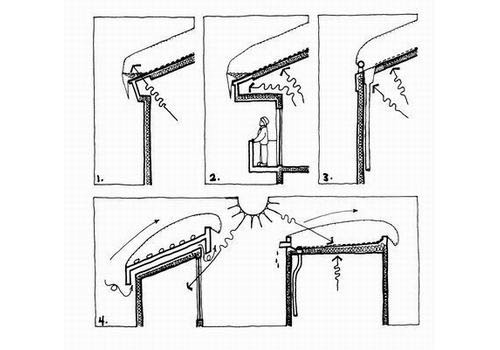

(1) heat leak at eave stops ice dam; (2) heated overhang should extend out; (3) snow arrester and inside gutter prevent slippage and icicles; (4) cold roof insulated from heat prevents damming, as does flat roof. Drawing by Jocelyn Bates Helgerson
